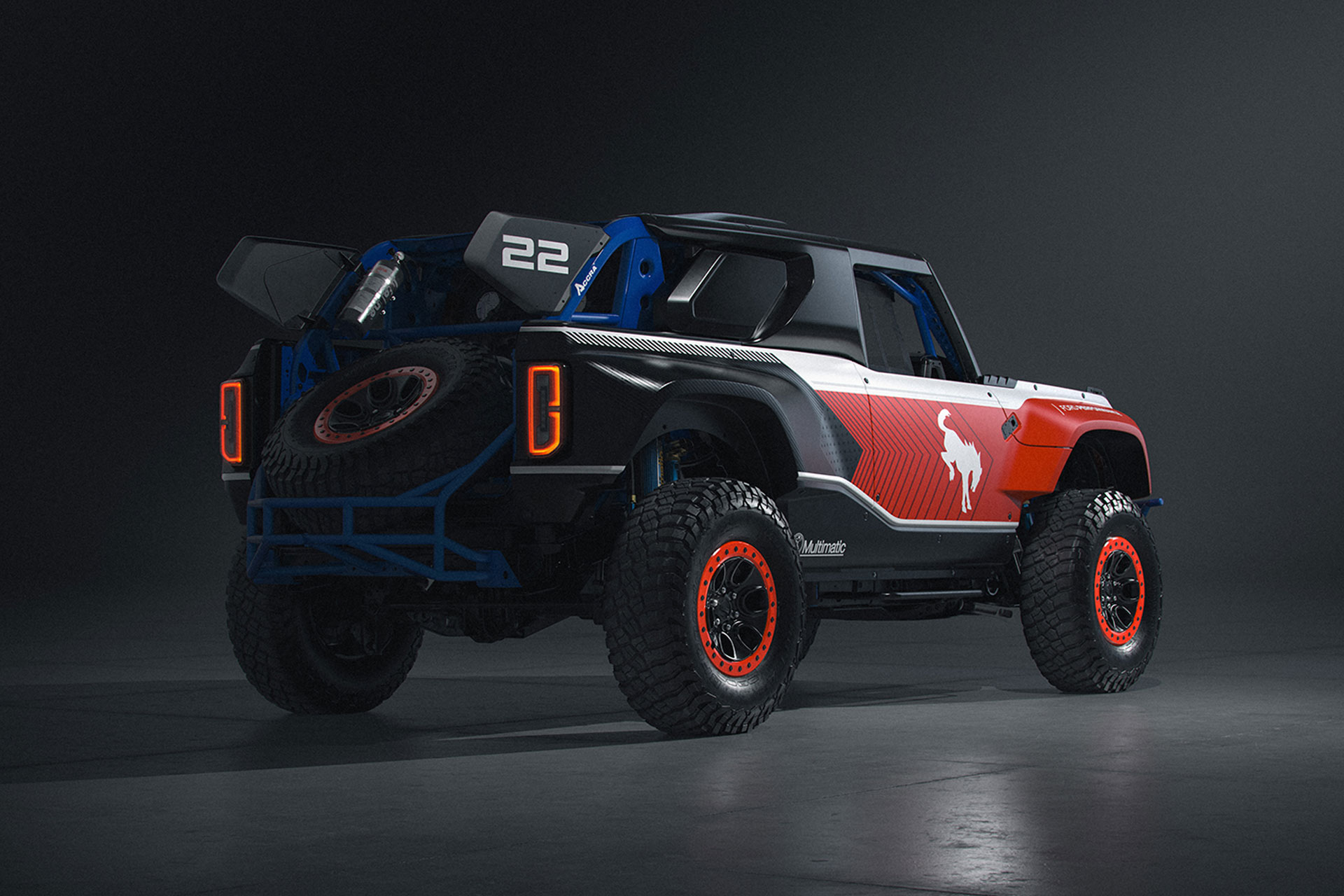

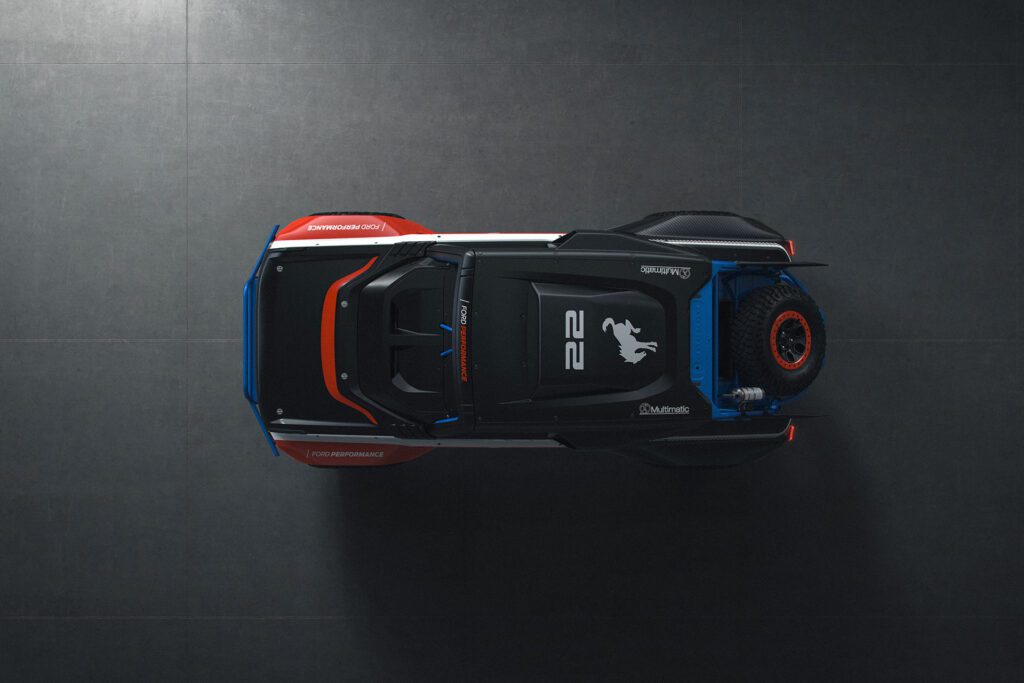

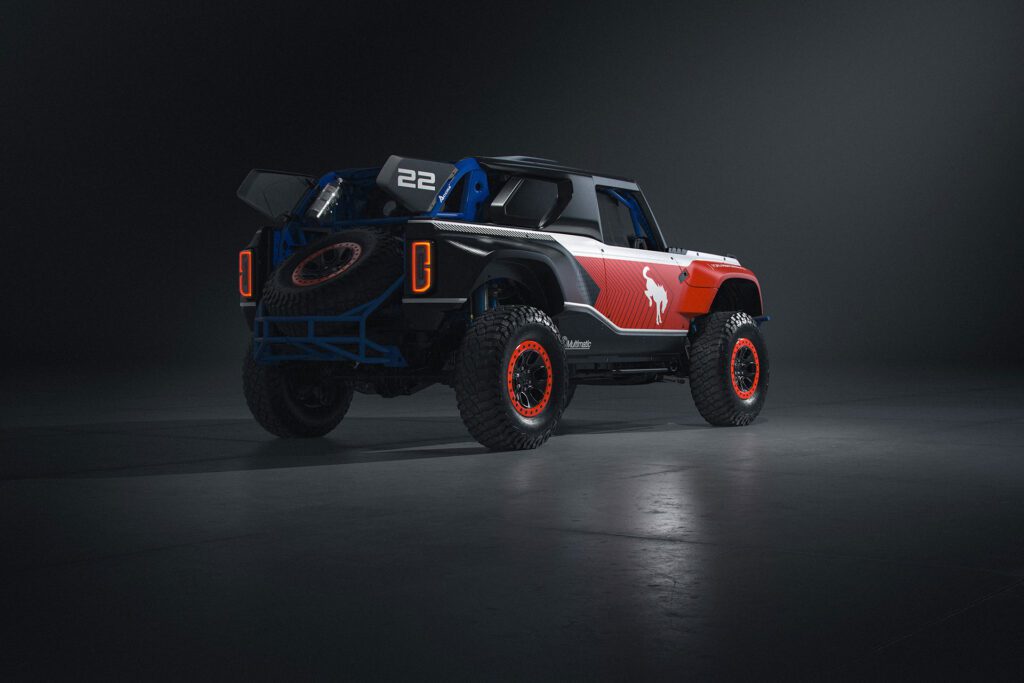

Ford Bronco™ DR
A turnkey, V8-powered desert racer engineered with Ford Racing for Baja-level endurance.
Overview
Purpose-built for competition, the Bronco™ DR is powered by a third-generation 5.0-litre Ford Coyote V8, targeting 400+ horsepower, and paired with a 10R80 10-speed automatic transmission and a part-time, selectable 4×4 system with permanently locked hubs for maximum durability and traction across extreme terrain.
Its suspension system features Multimatic Positional Selective DSSV™ dampers with 80 mm bodies and finned cooling channels, delivering race-grade control, consistency, and heat management. Suspension travel reaches 400 mm at the front and 443 mm at the rear, figures that underscore the Bronco™ DR’s desert-racing pedigree. A Multimatic-designed billet aluminium lower control arm further enhances strength and precision.
The chassis integrates a Multimatic safety cage with OE ACCRA® tubes, fully FEA-optimised for crash performance, stiffness, and energy management. A rear-mounted radiator and a 65-gallon (246-litre) fuel cell improve weight distribution and high-speed cooling capacity while supporting long-distance endurance racing.
Proving its capability on the global stage, the Bronco™ DR has earned an undefeated class record with wins at the NORRA 1000, Vegas to Reno, and the iconic Baja 1000, cementing its reputation as a modern off-road icon and the ultimate embodiment of Ford’s “Built Wild” philosophy.
For Multimatic, the Bronco™ DR represents the ultimate expression of motorsport-driven engineering, combining advanced suspension technology, structural innovation, and race-proven performance into a machine built for desert racing’s toughest challenges.
Bronco™ DR Technical Specification
ENGINE
| Engine | Ford Gen. 3 Coyote 5.0-litre V8 |
| Horsepower | 400+ bhp |
| Torque | 486 lb-ft |
| Compression ratio | 12.0:1 |
| Recommended fuel | Premium |
| Fuel capacity | 65 gallons / 246 litres |
| Cooling | Rear mounted radiator |
SUSPENSION
| Dampers | Multimatic DSSV™ Positional Selective Dampers (PSD), 80mm bodies with finned cooling channels |
| Front suspension travel | 400mm (absolute theoretical metal to metal limits) |
| Rear suspension travel | 443mm (absolute theoretical metal to metal limits) |
| Lower control arm | Multimatic-designed billet aluminum lower control arm |
BRAKES
| Brakes | Four-wheel disc brakes |
| Optional | Alcon grooved and ventilated discs with 6-piston calipers front and rear |
CHASSIS
| Safety features | Full safety cage with integrated OE ACCRA® tubes, FEA optimised |
| Approach angle | 47° |
| Breakover angle | 33° |
| Departure angle | 37° |
| Ground clearance | 300 mm (to underside of trailing arm protection plate) |
| Overall length | 4930 mm (as measured between: forward most point, the tow hook / the rear most part, tie down boss on rear bumper) |
| Overall width | 2,240 mm |
| Front track width | 1,872 mm |
| Rear track width | 1,862 mm |
| Height | 2,042 mm |
| Wheelbase | 2,952 mm |
ENGINE
| Engine | Ford Gen. 3 Coyote 5.0-litre V8 |
| Horsepower | 400+ bhp |
| Torque | 486 lb-ft |
| Compression ratio | 12.0:1 |
| Recommended fuel | Premium |
| Fuel capacity | 65 gallons / 246 litres |
| Cooling | Rear mounted radiator |
TRANSMISSION
| Transmission | 10R80 10-speed automatic |
| Axle ratio | 4.88:1 |
| Layout | Longitudinally mounted front engine with center-mounted transfer case, independent front axle, solid rear axle |
| Type | Part-time selectable engagement 4x4, permanently locked hubs |
WHEELS AND TIRES
| Wheels | Beadlock rims (OE production wheels) |
| Wheel size | 17x8.5 |
| Tyres | 37-Inch BFGoodrich KDR3 |
